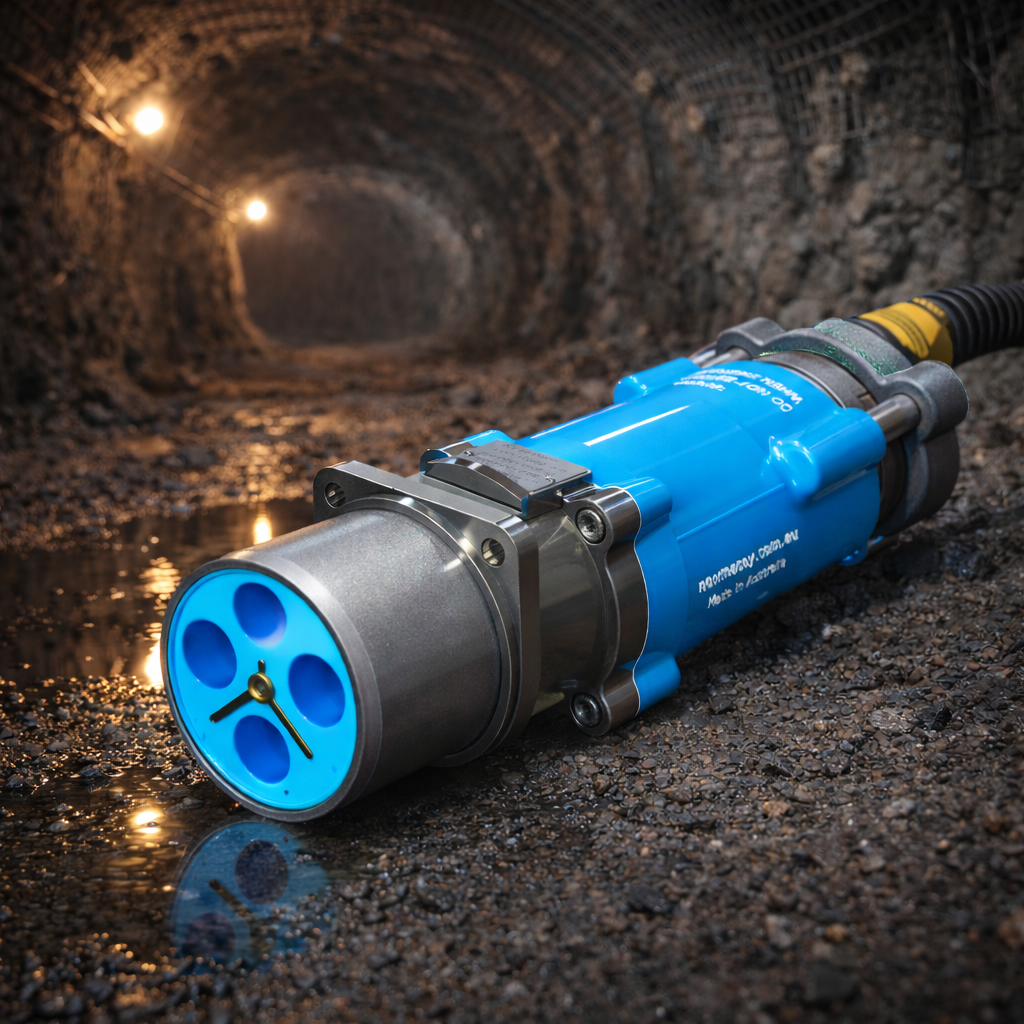

60 amp Restrained Plug - New Macey

[Contact us for a price]

Part Number Selector

This product is electronically distributed.

Request A Quote

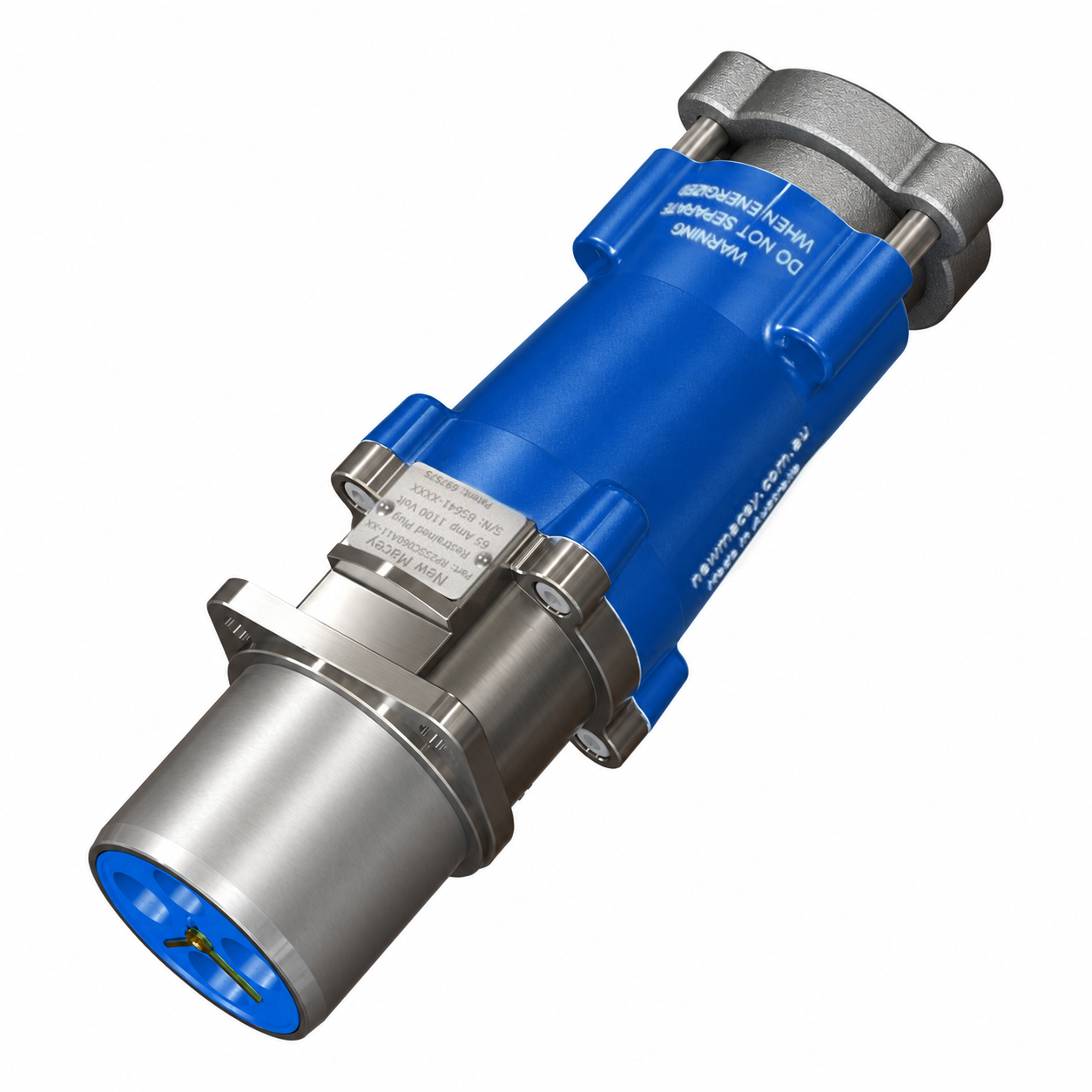

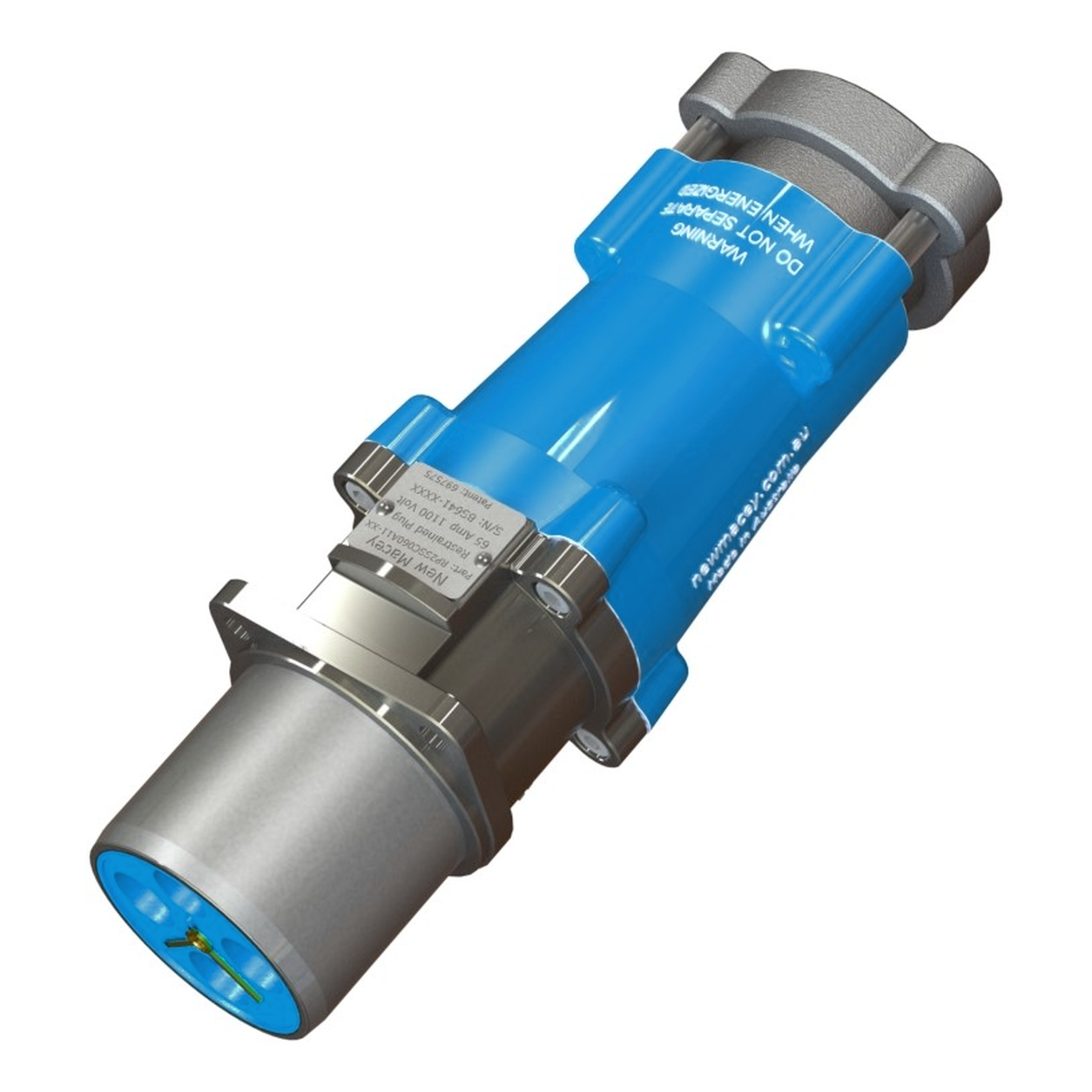

60amp Restrained Plug - New Macey








Advantages

  • Stainless Steel Construction - withstands demanding environmental conditions
  • Only one part number required for purchasing - delivered as a complete kit
  • Unique modular design - allows complete access to the termination
  • Solderless thimbles - grub screw design increases efficiency
  • Unique sealing resin - removes chance of water ingress
  • Integrated earths - increases efficiency
  • Reusable grommets

Technical Specifications

  • Rated Voltage | 660V / 1100V
  • Rated Current | 65 Amp
  • Material | Stainless Steel 304
  • Max. Ambient Temperature | 150oC
  • Conductor Connection | Grub Screw / Crimp
  • Weight before Termination | 3.9kg
  • Manufactured in Australia
  • Compliance Standards | AS/NZS Compliant




PN
Part Number Builder – 60A Plug
Step 1: choose your base part number. Step 2: append the grommet number to complete the code.
How it Works
Completed Part Number Example
RP2SSC060A11-32
Base Part No. + “-” + Grommet No.
Step 1: Select voltage + cable CSA to get the base part number.
Step 2: Select the correct grommet number and append it using a hyphen.
Notes
• Items marked * are Solder only.
• Please verify cable manufacturer specifications before selection.
Step 1 – Base Part Number
660V
Cable CSA Base Part No. Notes
6mm² RP1SSC060A11 Crimp/Solder option
10mm² RP1SSC060A12 Crimp/Solder option
16mm² RP1SSC060A13 Crimp/Solder option
25mm² RP1SSS060A14* Solder only
1100V
Cable CSA Base Part No. Notes
6mm² RP2SSC060A11 Crimp/Solder option
10mm² RP2SSC060A12 Crimp/Solder option
16mm² RP2SSC060A13 Crimp/Solder option
25mm² RP2SSS060A14* Solder only
Step 2 – Grommet Number
Grommet No. Grommet I.D. (mm) Typical Use (guide only)
11 9–11 —
14 11–14 —
17 14–17 —
20 17–20 Type 2S – 2.5mm²
23 20–23 Type 2S – 6/10mm²
26 23–26 —
29 26–29 —
32 29–32 TY241.1 – 6mm²
35 32–35 TY241.1 – 10mm²
38 35–38 TY241.1 – 16mm²
41 38–41 TY241.1 – 25mm²
Completed PN format: RPx… + - + Grommet No.
