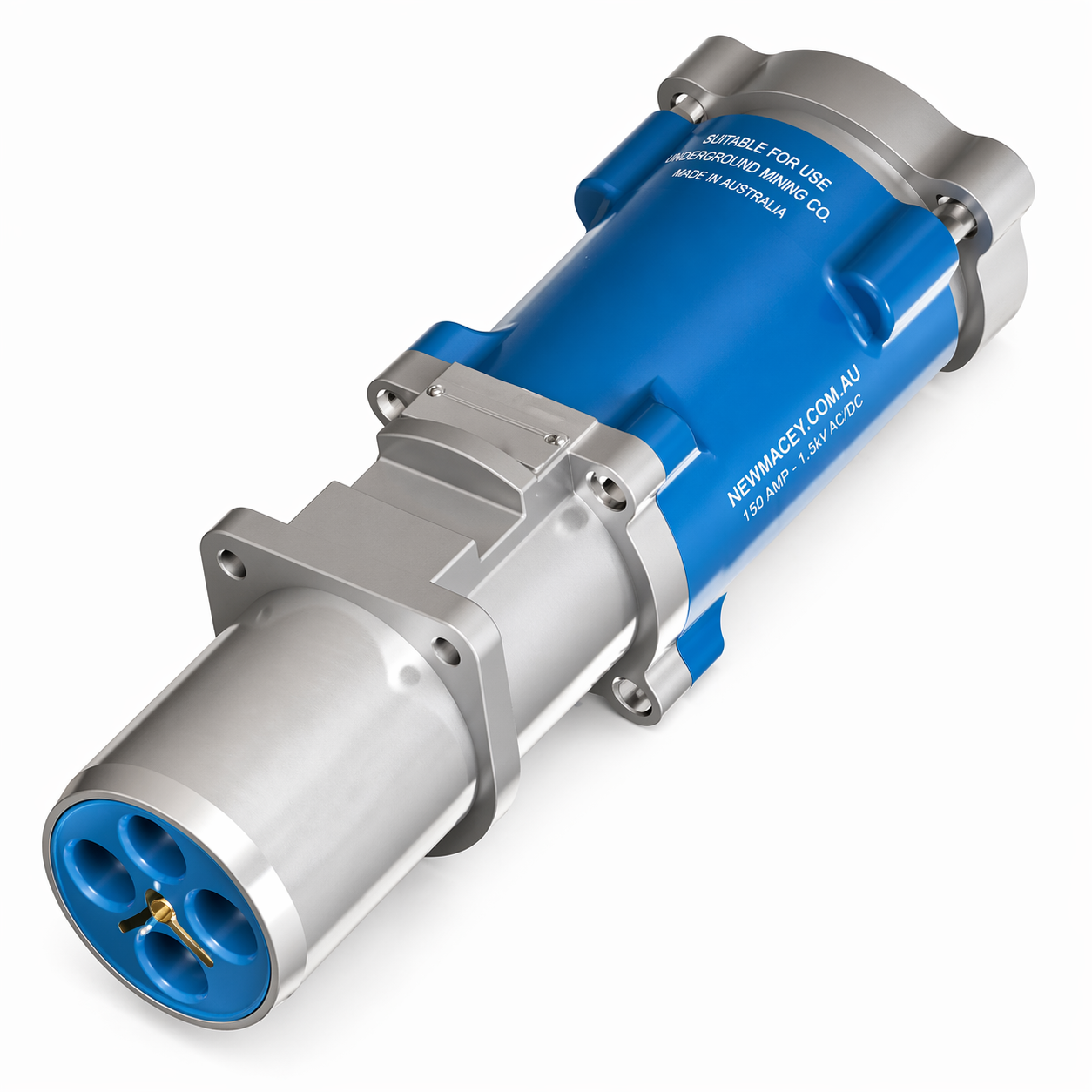

150 Amp Restrained Plug - New Macey
150 Amp Restrained Plug - New Macey
[Contact us for a price]
Part Number Selector
Voltage
:
Please, select one
660V
1100V
Cable Size :
Select the previous option first
Grommet Size (150amp Plug) :
Select the previous option first
CODE:
Availability:
1 item(s)
Request A Quote
Description
150amp Plug (660 / 1100 Volt) - New Macey
Advantages
1. Unique sealing compound ensures water ingress will not penetrate up into the termination of the plug.
2. Full stainless steel construction is more robust and built for heavy duty use.
3. Bolted body connection means you can easily access the termination and there is a reduced amount of parts.
4. Grub screw, Solder or Crimp options available. We have also developed unique ground grub screws that do not cut into the cable.
5. Three way lock down on the grommet clamp allows even torque to be applied to the grommet.
6. Custom grommet developed to ensure it can be reused and is resistant to chemical corrosion.
Technical Specifications
Rated Voltage | 660V / 1100V
Rated Current | 150 Amp
Material | Stainless Steel 304
Max. Ambient Temperature | 150oC
Conductor Connection | Grub Screw / Crimp / Solder
Weight before Termination | 5.5 kg
Compliance Standards | AS/NZS Compliant
Manufactured in Australia
Voltage
Part No.
Cable size CSA mm2
Thimble I.D. mm
660V
RP1SSC150A
14
25
8
660V
RP1SSC150A
15
35
9
660V
RP1SSC150A
16
50
10
660V
RP1SSS150A
17
70
12.8
660V
RP1SSS150A
18
95
14.4
Voltage
Part No.
Cable size CSA mm2
Thimble I.D. mm
1100V
RP2SSC150A
14
25
8
1100V
RP2SSC150A
15
35
9
1100V
RP2SSC150A
16
50
10
1100V
RP2SSS150A
17
70
12.8
1100V
RP1SSS150A
18
95
14.4
Groment Number
Description
(Groment I.D)
Groment
Number
Description
(Groment I.D)
11
9mm – 11mm
Ø
38
35mm – 38mm
Ø
14
11mm – 14mm
Ø
41
38mm – 41mm Ø
17
14mm – 17mm
Ø
44
41mm – 44mm (Suits 35mm² 241.1 Cable)
Ø
20
17mm – 20mm
Ø
47
44mm – 47mm
Ø
23
20mm – 23mm
Ø
50
47mm – 50mm (Suits 50mm² 241.1 Cable)
Ø
26
23mm – 26mm
Ø
53
50mm – 53mm
Ø
29
26mm – 29mm
Ø
56
53mm – 56mm (Suits 70mm² 241.1 Cable)
Ø
32
29mm – 32mm
Ø
(Suits 6mm² 241.1 Cable)
57
54mm – 57mm
Ø
35
32mm – 35mm
Ø
